94 80S A1 PC

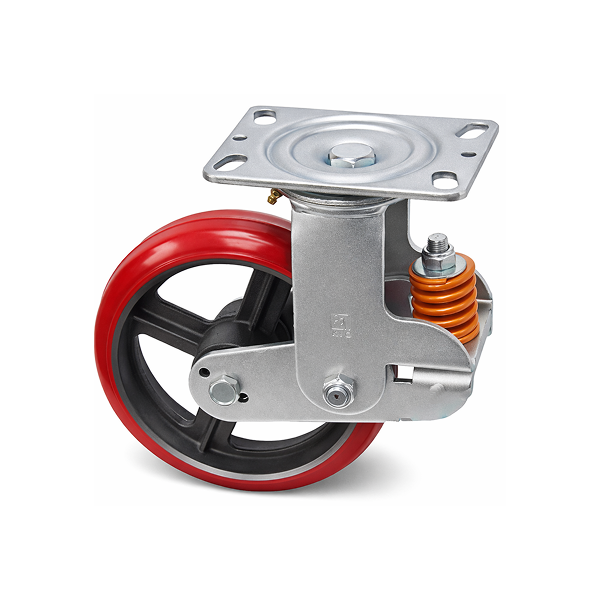

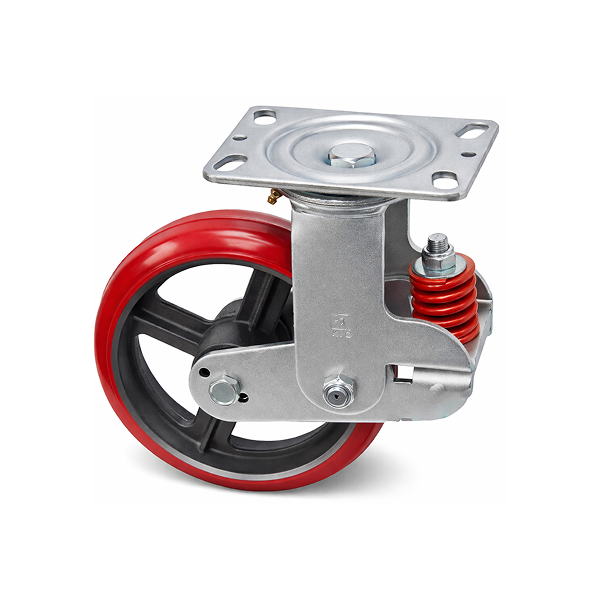

Heavy Duty Casters
- Heat-Treated Double-Row Ball Bearing
- Zerk-Type Grease Fitting (Lubrication Nipple) Connection
- Optional Wheel Brake
- This product is registered/approved by HYUNDAI & KIA Motors.
- Load Springs are of a Replaceable Design
- Integrated (Single-Piece) Bracket Structure for Increased Durability
Technical Information
| Wheel Diameter |
Wheel Width |
Wheel Material | Bearing Type |
Axle Diameter |
Overall Height | Swivel Radius |
Load Capacity |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | kg | |
| 203 | 48 | Polyurethane | Ball | Ø12,7 | 252 | 177 | 450 |
| Fastening Type | Fastening Shape | Product Code No | Fastening Specification | ||
|---|---|---|---|---|---|
| Overall Size | Bolt Hole Spacing | Bolt Size | |||
| TOP PLATE |  |
A1 | 158 X 114 | 133 X 86 – 125 X 62 (129 X 74) 136 |
M12 M8 |
Areas of Application
| Shock-Absorbing Transport Trolley |
| Automotive Parts Pallet |
Accessories
| Accessories Code | Description |
| TB | Top Lock Brake |

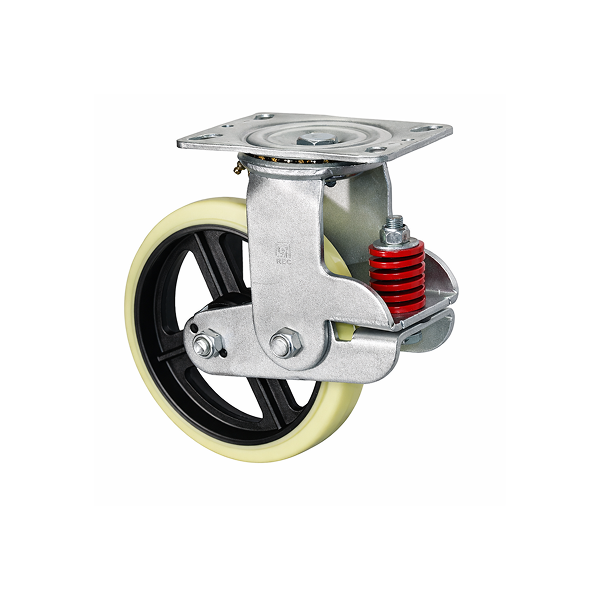

| BG | Beige Wheel Option Available |
